Micro Pressure Pump Air Pump Water Pump Liquid Pump Motor

water pump 03 v1

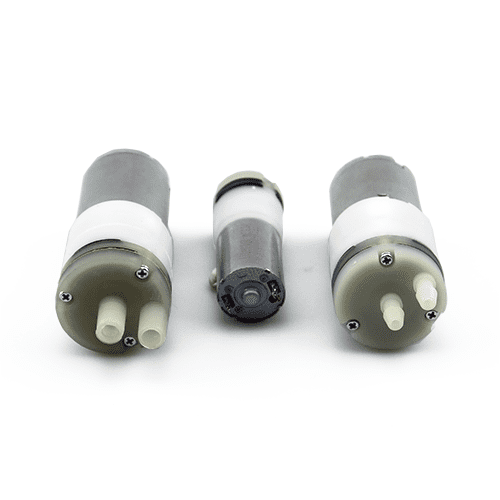

water pump 01 v1

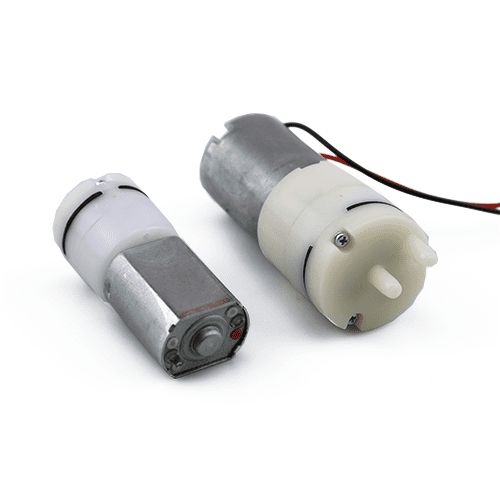

air pump 04 v1

air pump 03 v1

air pump 02 v1

air pump 01 v1

Categories Air Pump, Liquid Pump, Water Pump Tags Air Pump, Centrifugal Pump, Diaphragm Pump, Liquid Pump, Pump Motor, Water Pump

Additional information

Product Details

Name:	R020# Air Pump Motor

Model #:	CRE-020S
Applications:	Suitable for occasions requiring continuous work for a long time, such as online gas sampling, vacuuming of airtight containers, air pumping, suction, gas circulation, foam pumps, soap dispensers, induction hand sanitizers, fish tank aerators, disinfection guns
Features:	low power consumption, long life, stable performance, portable, no interference, low noise
Rated voltage:	1.2～6V
No-load speed:	1500～18000 rpm/min
No-load current:	0.03～0.2A
Load performance:	400mmHg, 50KPa

Name:	F130# Air Pump Motor

Model #:	CFE-130S (iron cover)
Applications:	Widely used in eye care equipment, beauty equipment, beer machine, mini blood pressure monitor
Features:	low power consumption, long life, stable performance, portable, no interference, low noise
Rated voltage:	1.2～24V
No-load speed:	1500～28000 rpm/min
No-load current:	0.03～1.0A
Load performance:	500mmHg, 80KPa


Name:	R310# Pump Motor
Model #:	CRE-310S
Applications:	automatic tea machine, electric wine decanter, breast pump, coffee machine, water dispenser
Features:	low power consumption, long life, stable performance, portable, no interference, low noise
Rated voltage:	1.2～6V
No-load speed:	3～3000 rpm/min
No-load current:	0.03～1.0A
Load performance:	pumping volume: 30 ~ 100mLPM / gas flow: 1.5 ~ 3.0LPM


Name:	R310# Air Pump Motor
Model #:	CRE-310S
Applications:	Suitable for occasions requiring continuous work for a long time, such as online gas sampling, vacuuming of airtight containers, air pumping, suction, gas circulation, foam pumps, soap dispensers, induction hand sanitizers, fish tank aerators, disinfection guns
Features:	low power consumption, long life, stable performance, portable, no interference, low noise
Rated voltage:	1.2～6V
No-load speed:	3～3000 rpm/min
No-load current:	0.03～1.0A
Load performance:	500mmHg, 70KPa

Name:	R310# Foam Pump Motor

Model #:	CRE-310S
Applications:	Foam pump, soap dispenser, induction hand sanitizer
Features:	low power consumption, long life, stable performance, portable, no interference, low noise
Rated voltage:	1.2～6V
No-load speed:	3～3000 rpm/min
No-load current:	0.03～1.0A
Load performance:	pumping volume: 30 ~ 100mLPM / gas flow: 1.5 ~ 3.0LPM


Name:	R370 Negative Pressure Pump Motor
Model #:	CRE-370S
Applications:	Vacuum packaging machines, intelligent robot extractors, medical equipment
Features:	low power consumption, long life, stable performance, portable, no interference, low noise
Rated voltage:	1.2～9V
No-load speed:	1500～18000 rpm/min
No-load current:	0.03～1.0A
Load performance:	600mmHg, 70KPa

Name:	R370# Air Pump Motor

Model #:	CFE-370S
Applications:	Suitable for occasions requiring continuous work for a long time, such as online gas sampling, vacuuming of airtight containers, air pumping, suction, gas circulation, foam pumps, soap dispensers, induction hand sanitizers, fish tank aerators, disinfection guns
Features:	low power consumption, long life, stable performance, portable, no interference, low noise
Rated voltage:	1.2～9V
No-load speed:	1500～18000 rpm/min
No-load current:	0.03～1.0A
Load performance:	500mmHg, 70KPa

Name:	R520# Air Pump Motor

Model #:	CRE-520S
Applications:	Suitable for occasions requiring continuous work for a long time, such as online gas sampling, vacuuming the airtight device, pumping, suction, gas circulation, foam pump, soap dispenser, induction hand washing machine, fish tank aerator, disinfection gun
Features:	low power consumption, long life, stable performance, portable, no interference, low noise
Rated voltage:	1.2～24V
No-load speed:	1500～18000 rpm/min
No-load current:	0.03～1.2A
Load performance:	800mmHg, 70KPa

Name:	R528# Air Pump Motor

Model #:	CRE-528S
Applications:	Suitable for occasions requiring continuous work for a long time, such as online gas sampling, vacuuming of airtight containers, air pumping, suction, gas circulation, foam pumps, soap dispensers, induction hand sanitizers, fish tank aerators, disinfection guns
Features:	low power consumption, long life, stable performance, portable, no interference, low noise
Rated voltage:	1.2～24V
No-load speed:	1500～18000 rpm/min
No-load current:	0.03～1.0A
Load performance:	1000mmHg, 90KPa

Please do not hesitate to click the above button and consult us if you have any questions about the technical details.
